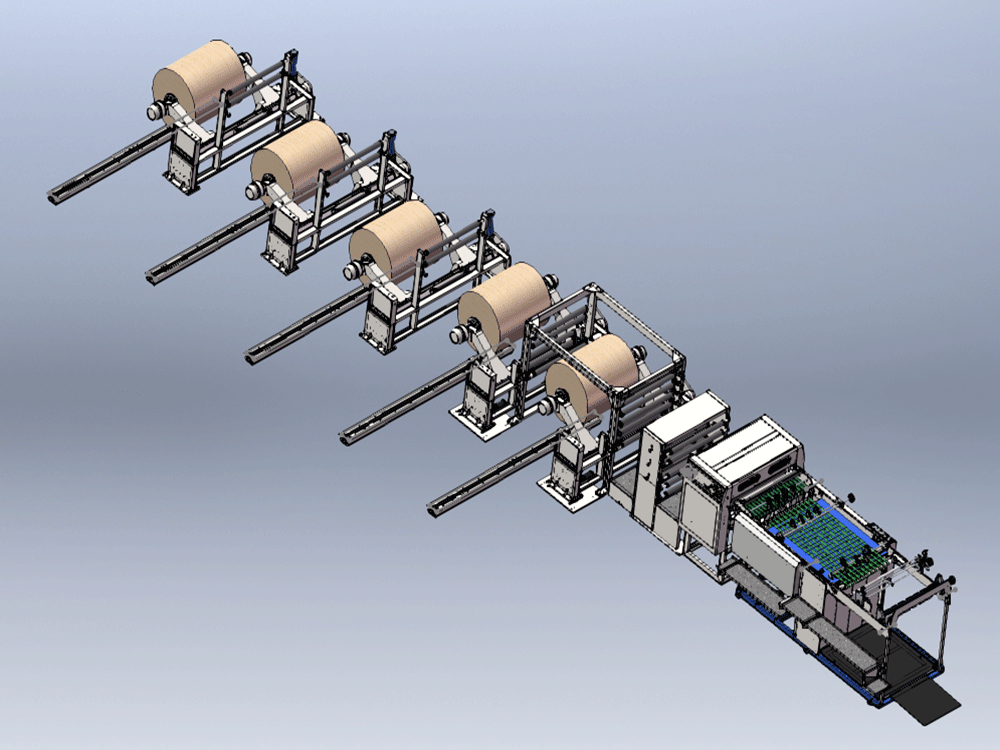

SDH model web cutting machine apply the advanced technique of Taiwan and Britain. The machine is trans mitted by assisting motor . The speed of cutting paper is fast and stable . Germany precise bear and cutting knife assure the high cutting precision. The touch screen make the operation simple. Theanti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry and will improve the efficiency and benefit for your company to a large extent.
The content of standard configuration
1.High-precision single knife cutting machine -----------1set
2.Prismatic adjustment system for paper-------------------1set
3.Automatic counting and label inserting equipment -----1set
4.Paper transporting equipment------------------------------1set
5.Automatic paper trimming and collecting machine-----1set
6.Electrical controlling system--------------------------------1set
7.Driving motor------------------------------------------------1set
8.Double lime pneumatic shaftiess paper rack-------------1set
9. Automatic tension system--------------------------------------1set
Main technical parameters：
Model | SDH1400 | SDH1700 | SDH1900 |
Model of cutting paper | The up knife cut reciprocally and the down knife is fixed |
Beference weight of cutting-paper | 50-550g |
Maximum cutting speed | 300cuts/min |
Maximum cutting meter speed | 300m/min |
Cutting accuracy | The cutting length is below 1000mm :±0.5% The cutting length is over 1000mm: ±0.05% |
Cutting length range | 450-1450 |
Maximum scroll diameter | 1800mm (71”) Max |
Maximum paper-cutting width | 1400mm | 1700mm | 1900mm |
Paper-piling height | 1300mm |
Groos weight | 13000kg | 15000kg | 17000kg |
Power consumption | AC380V*50HZ |
The request for air compressor | 0.8MPa |
